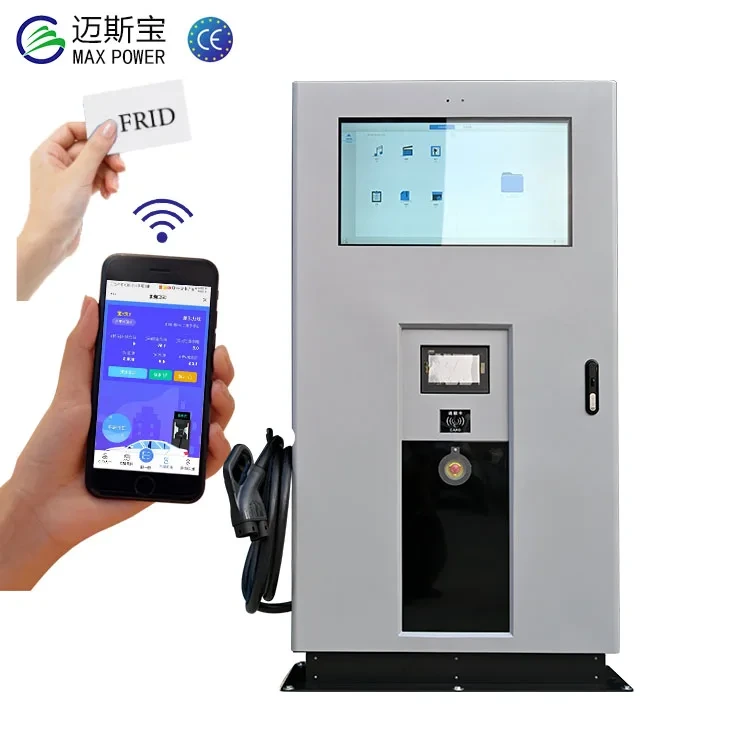

J1772 Ev Dc Fast Charging Station 40kw 60kw Ocpp Ccs
The J1772 40kw 60kw Electric Car Charger Station is a fast charging device that supports OCPP and CCS technologies for electric vehicles. It has the capability to deliver a quick charge to your EV, making it convenient and efficient for on-the-go charging. With its 60kw output, users can benefit from rapid recharging speeds, making it a reliable option for electric car owners.
Remote management, convenient and safe
The charger supports remote firmware upgrading and remote power module upgrading, and users can easily realize device management and maintenance through APP. In addition, it also has a remote diagnostic function, which can simplify the process of data collection and analysis, and identify and solve problems in a timely manner. Meanwhile, the charger adopts IP54 protection level and IK10 anti-vandalism shell, which ensures stable operation even in harsh environments and protects users' safety.
Product Display
Efficient, Rapid, Convenient, Future-proof
High-standard certification and wide compatibility
The charger complies with a number of international standards such as IEC 61851, IEC 62196, DIN 70121 and ISO 15118, ensuring compatibility with a wide range of electric vehicles. Whether the electric vehicle adopts CCS or J1772 interface, it can enjoy fast and safe charging service. Meanwhile, the charger also supports OCPP communication protocol, which can be seamlessly connected with a variety of backend management systems to realize intelligent management and monitoring. In addition, the power range of 30KW-60KW makes the charger suitable for a variety of scenarios, such as CBD or public areas, to meet the diverse needs of users.
◎ Fast Charging
◎ OCPP Support
◎ CCS Compatibility
Application Scenario
Modularized design, flexible and efficient
The EV charger adopts a modularized design, including the control system, power supply system, distributed power supply system and power factor correction system, which makes the modules independent of each other and easy to maintain and upgrade. Users can flexibly configure the power level and charging interface according to the actual needs to meet the charging requirements in different scenarios. Meanwhile, the modularized design also improves the reliability and expandability of the charger, ensuring an efficient and stable charging experience.
FAQ
| Product Paramenters | |||
| MODEL | 30KW | 40KW | 60KW |
| INPUT | |||
| Nominal Input Voltage | 3-phase, 3ph + N + PE | ||
| Acceptable Input Voltage Range | 3-phase, 3ph + N + PE | ||
| Working Voltage Range | 50 - 60 Hz | ||
| Maximum Input Current | 5-200A | 5-200A | 5-200A |
| Frequency Range | ≦ 5% | ||
| Input Power Factor | > 0.99 @nominal voltage (100% load) | ||
| OUTPUT | |||
| Output Current Range (based on 2-output) | 5-200A | 5-200A | 5-200A |
| Output Voltage Range | 200~750VDC (600~750VDC in constant power mode) | ||
| Power Module | 15kW x 2 pcs | 20kW x 2 pcs | 30kW x2 pcs |
| Efficiency | > 94% | ||
| Module Output Current Unbalancce | < 5% | ||
| Module Output Voltage Ripple | < 0.5 | ||
| Module Output Voltage Precision | < 0.5% | ||
| MModule Output Current Precision | < 1% | ||
| Connector Single Mode (max.) | yes | yes | yes |
| Connector Double Mode (max.) | no | yes | yes |
| Power Distribution | Single plug mode / Average output mode | ||
| PROTECTION | |||
| Charger Safety Protection | Over/Under voltage, overload, output power limit function, short circuit, anti-access, earth leakage, lightning and overheat protection | ||
| Interface Safety Portection | Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection | ||
| USER INTERFACE | |||
| Status Indiators | Power on, charging and fault | ||
| Communication Protocol | OCPP 1.6 | ||
| Connection Communication Mode | In accordance with DIN 70121 and ISO 15118 standard | ||
| Connection Standard | CCS2 (IEC61851-23) and CHAdeMO 1.0 | ||
| ENVIRONMENT | |||
| Operating Temperature | -25°C to 50°C | ||
| Humidity | 0 - 95% (non-condensing) | ||
| Altitude | < 2000m | ||
| Noise Level | <65dB | ||
| PHYSICAL | |||
| IP Protection | IP54 | ||
| Cable Length | 5m | ||
| Dimension, D x W x H (mm) | 1900mm*1000mm*250excluding plug and cable | ||
| Net Weight (kgs) | 2330 | 340 | 360 |
