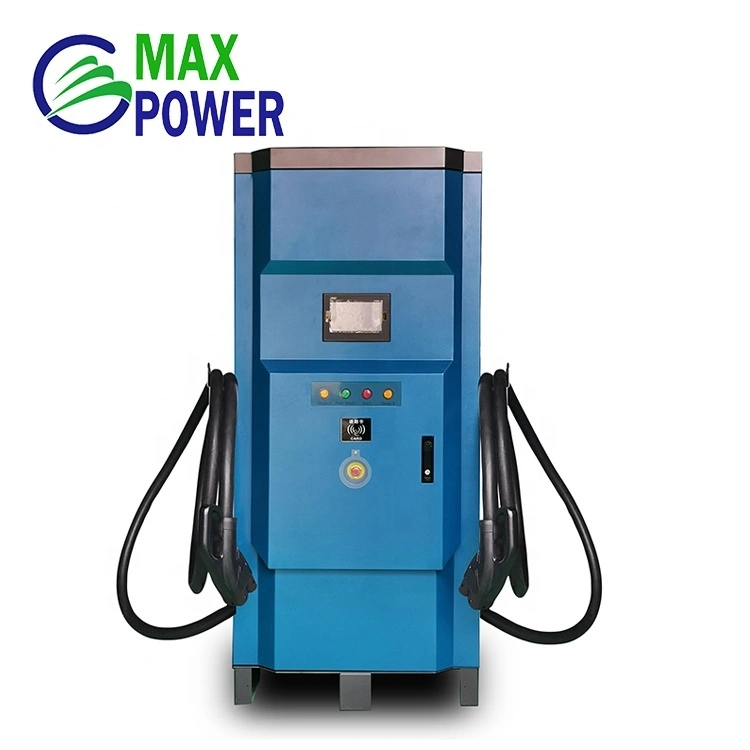

120kw Dc Fast Electric Vehicles Charging Station
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1(pieces):3(days),2-5(pieces):7(days),6-10(pieces):15(days),>10(pieces):To be negotiated(days)
Customization:
Customized logo (Min. Order: 30 sets),Customized packaging (Min. Order: 30 sets),Graphic customization (Min. Order: 50 sets)
Brand Name:
MAX POWER
Model Number:
FC120750
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Interface
7 inch colorful touch screen+IC card
Rated Output Power
120 KW
Product Name
MaxPower 120KW Commercial DC EV Charging Station
Input Voltage
380 VAC ± 20%, 380 VAC ± 15%
Input Current
190A
Output Voltage Range
200~750VDC
Certification
CE
IP Level
IP54
Output Current Range
0-250A
Warranty
12 Months
Output Power
120KW
Output Current
DC
Interface Standard
CCS/CHADEMO/GBT
Place of Origin
Guangdong, China
Condition
New
Product Paramenters
Features
*Modular design including control system, power source system, distributed power system, power factor system
*Auto sleep mode after fully charged with low standby power consumption at <5W
*Remote firmware upgrade with APP
*Remote power module upgrade
*Remote diagnostic function simplifis data collection and analysis process
*IP54 protection and 1K10 vandal-proof enclosure
*7" colored touch LCD display for easy configuration.
Products Description
EV CHARGER 60KW-180KW
*Smart DC charger is a configurable-multiple-outlet high-power charger which is suitable for CBD or public areas.
*The product consists of human-machine interaction part, power module, internal control system, communication module and charging cable assembly.
DC 180KW EV Charging Station
2. Wide output volatge range, 200V-750V, applicable to more models;Compatible with DC input,more extensive application scenarios .
3. High power density, smaller volume, less floor spare .
4. Reasonable air duct design, to ensure that the temperature difference between the air inlet and the outside is less than 3 degress .
5. Perfect safety protection, cutoff the output during emergency stop, more reliable .
6. Flexible UI customization, according to customer needs to customize.
MODEL | 60KW | 120KW | 180KW | |||
INPUT | ||||||
Nominal Input Voltage | 380 VAC ± 15% | |||||
Acceptable Input Voltage Range | 3-phase, 3ph + N + PE | |||||
Working Voltage Range | 50 - 60 Hz | |||||
Maximum Input Current | 118 A | 225A | 278A | |||
Frequency Range | ≦ 5% | |||||
Input Power Factor | > 0.99 @nominal voltage (100% load) | |||||
OUTPUT | ||||||
Output Current Range (based on 2-output) | 2 ~ 100 A | 2 ~ 200 A | 2 ~ 250 A | |||
Output Voltage Range | 200~750VDC (600~750VDC in constant power mode) | |||||
Power Module | 30kW x 2 pcs | 30kW x 4 pcs | 30kW x5 pcs | |||
Efficiency | > 94% | |||||
Module Output Current Unbalancce | < 5% | |||||
Module Output Voltage Ripple | < 0.5 | |||||
Module Output Voltage Precision | < 0.5% | |||||
MModule Output Current Precision | < 1% | |||||
Connector Single Mode (max.) | CCS2 (60kW) ChAdeMO (50kW) | CCS2 (120kW) ChAdeMO (50kW) | CCS2 (180kW) ChAdeMO (50kW) | |||
Connector Double Mode (max.) | CCS2 (30kW) ChAdeMO (50kW) | CCS2 (60kW) ChAdeMO (50kW) | CCS2 (90kW) ChAdeMO (50kW) | |||
Power Distribution | Single plug mode / Average output mode | |||||
PROTECTION | ||||||
Charger Safety Protection | Over/Under voltage, overload, output power limit function, short circuit, anti-access, earth leakage, lightning and overheat protection | |||||
Interface Safety Portection | Circuit discharge function, insulation monitoring device (IMD) and battery reverse parity protection | |||||
USER INTERFACE | ||||||
Status Indiators | Power on, charging and fault | |||||
Communication Protocol | OCPP 1.6 | |||||
Connection Communication Mode | In accordance with DIN 70121 and ISO 15118 standard | |||||
Connection Standard | CCS2 (IEC61851-23) and CHAdeMO 1.0 | |||||
ENVIRONMENT | ||||||
Operating Temperature | -25°C to 50°C | |||||
Humidity | 0 - 95% (non-condensing) | |||||
Altitude | < 2000m | |||||
Noise Level | <65dB | |||||
PHYSICAL | ||||||
IP Protection | IP54 | |||||
Cable Length | 5m | |||||
Dimension, D x W x H (mm) | 750 x 530 x 1685, excluding plug and cable | |||||
Net Weight (kgs) | 275 | 310 | 328 | |||
CONTACT US NOW!!
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Compliance Standard
*IEC 61851 Electric vehicle conductive charging system
*IEC 62196 plugs, socket-outlets, vehicle connectors and vehicle inlets-conductive carging of electric vehicle
*DIN 70121 Electromobility-Digital communication between a d.c. EV charging station and an electric vehicle for control of d.c. charging in the combined charging system
*ISO 15118 Road vehicles-Vehicle-to-Grid Communication Interface
