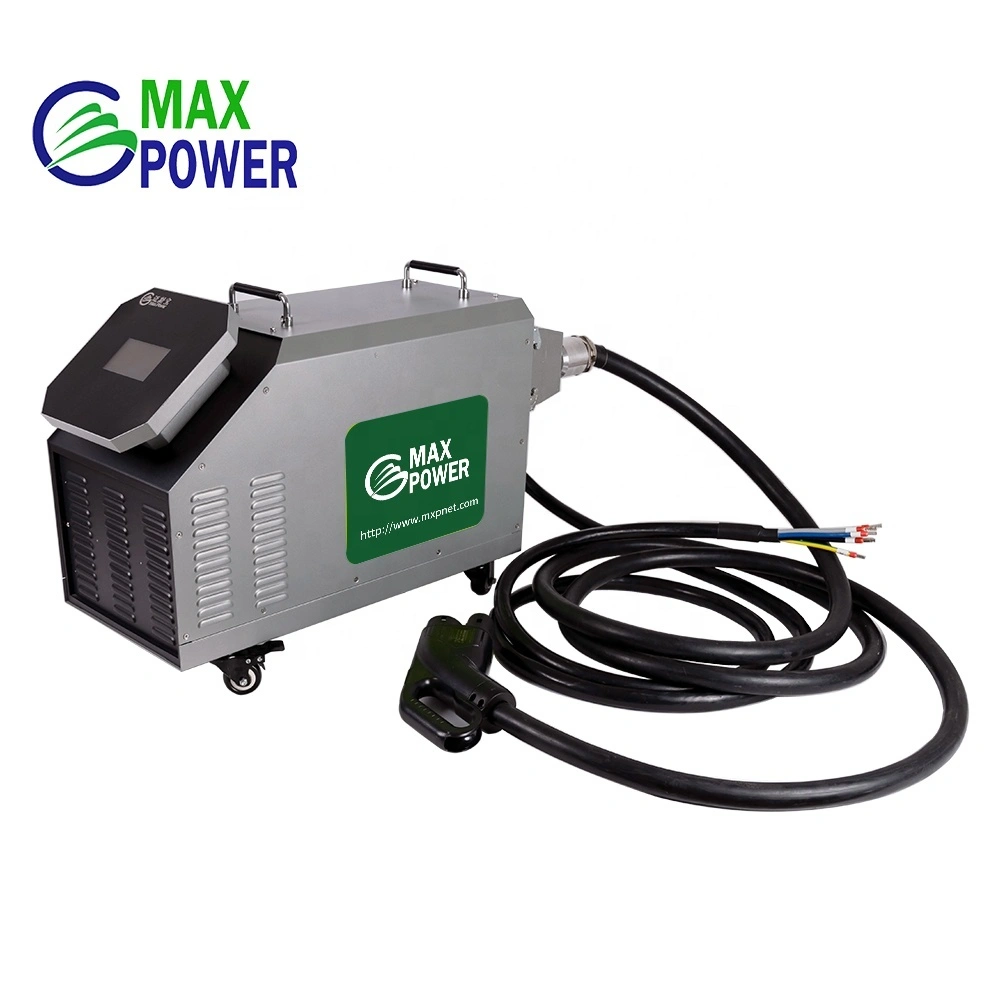

Max Power 30KW DC EV Charging Station CCS2
The Max Power 30KW DC Fast EV Charging Station CCS2 is a high-powered charging station designed for electric vehicles. With its CCS2 connector, it can deliver fast and efficient charging for EVs on the go. This charging station is perfect for use at rest stops, gas stations, or any location where EV owners may need a quick recharge.
Efficient fast charging, widely compatible
Designed for electric vehicles, this 30KW DC fast charging station provides up to 30 kW of output power, ensuring a fast and efficient charging experience. Compatible with the CCS2 interface standard, it is able to adapt to a wide range of electric vehicles from different manufacturers, including those with different charging standards. Whether for home, business or public areas, it can easily meet a variety of charging needs.
● Fast Charging Station
● Sleek and Durable Design
● Convenient and Quick
● Premium Charging Station
Product Display
Efficient, Powerful, Fast Charging
Intelligent and friendly, easy to operate
Equipped with a 4.3-inch display, the operation interface is intuitive and simple, and the display will prompt the operation steps so that users can get started easily. At the same time, the product has a built-in voice navigation function, which further simplifies the operation process. The intelligent and friendly interface design makes the charging process more convenient and intuitive.
Application Scenario
Durable and reliable, upgraded protection
Made in China, it is of superior quality, durable and reliable, and comes with a 12-month warranty. The product has a high-performance charging module, ultra-wide charging range, and charging efficiency of up to 95% or more. The product also features a rain cover design, customized specifically for this type of charger to provide extra protection. The anti-collision rating reaches IK8, which is not afraid of external collision and ensures stable operation in various environments.
FAQ
| Production parameters | ||
| Model | 21KW | |
| AC Input | Input Rating | 90-265V |
| AC Input Connection | Single Phase | |
| Max. Input Current | 60A | |
| Frequency | 50 /60 Hz | |
| Power Factor | >0.99@full load | |
| Efficiency | 95% | |
| DC Out put | Output Voltage Range | 200-750Vdc |
| Max, Output Power | 21KW | |
| Max. Output Current | 60A | |
| User Interface | TFT-LCD Touch Panel | No |
| Push Buttons | No | |
| Interface | USB | |
| Packing | Dimension | 640×390×230mm |
| Weight | 68KG | |
| Environmental | Operating Temperature | ’-40~85℃，25℃（TYPE） |
| Humidity | 5%-90% RH, non-condens,ng | |
| Altitude | 2000m | |
| IP Level | IP44 | |
| Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 3M(GB/T) Customized acceptable |
| Regulation | EN61851-1 | |
| Regulation | Certification | CE , ROHS |
| Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | |
