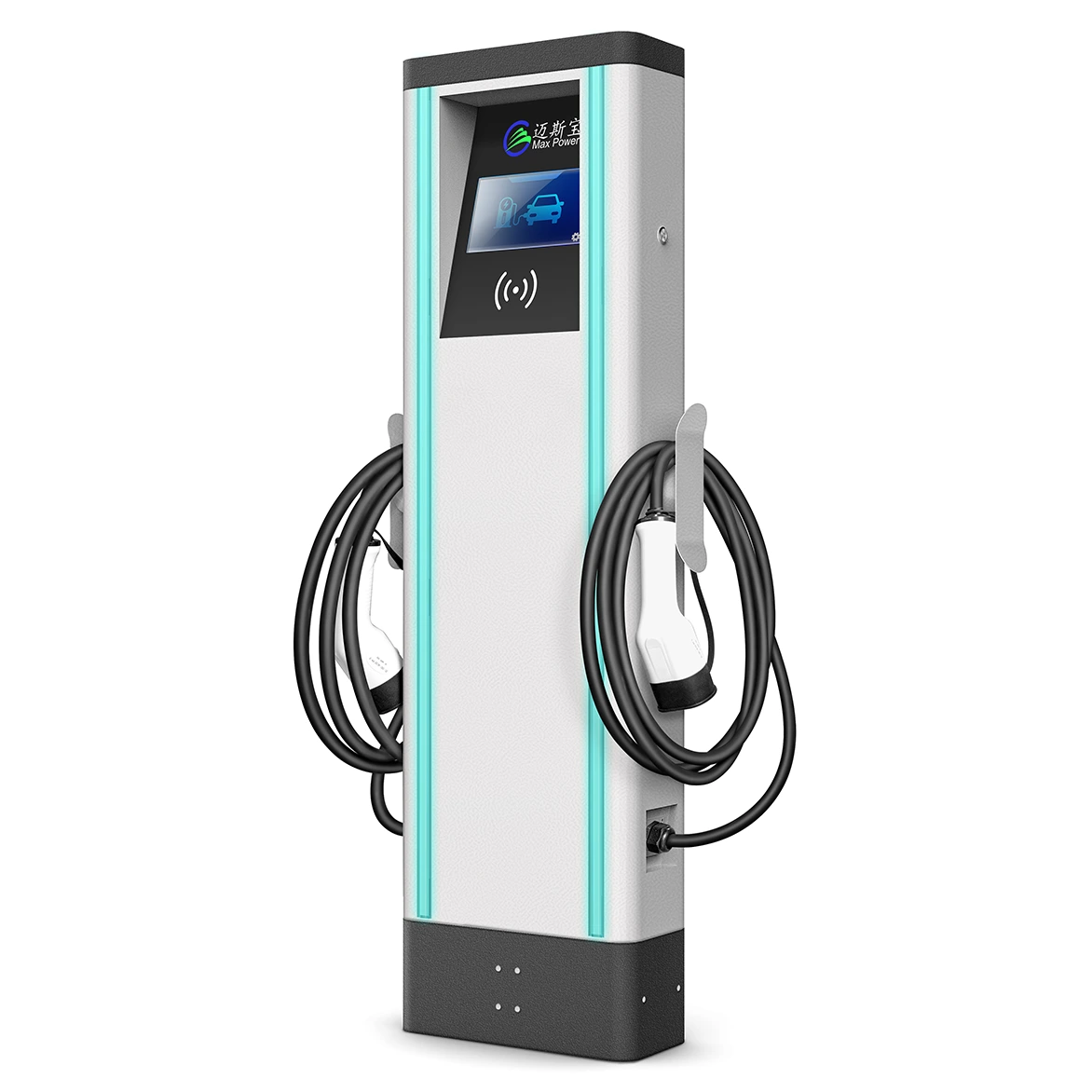

Manufacturer Dual Gun Fast Car Charging Station Ac Ev Charger 7kw 230v
The Manufacturer Dual Gun 7kw 230v Fast Car Charging Station is a versatile and efficient AC EV charger designed for electric vehicle owners. With its dual gun design and 7kw power output, it can charge two vehicles simultaneously at a fast speed of 230v. This charging station is ideal for use in public parking lots, workplaces, and residential areas where multiple EVs may need charging at the same time.
Advanced Protection
The charging station features an IP65 waterproof rating and an IK8 impact protection rating, allowing it to easily handle rain and dusty environments, ensuring safety and durability when used outdoors. The carbon steel casing is not only rugged and durable, but also provides protection against electric shocks, while the device is fire retardant, providing users with all-around safety.
● Efficient
● Modern
● Convenient
● Versatile
Product Display
Efficient, Fast, Reliable, Versatile
Intelligent reservation charging function
By utilizing the peak and valley time tariff policy, users can set the charging start time in advance to achieve intelligent charging reservation. This function not only helps to save charging costs, but also balances the load on the power grid to a certain extent and improves energy utilization efficiency.
◎ Dual-Gun Functionality
◎ Rapid Charging Capacity
◎ Sleek and Durable Design
Application Scenario
Interactive touch display
The device is equipped with an interactive touch display, which can display key information such as charging current in real time and support one-button background management. This intuitive and clear display makes it easy for users to grasp the status of the device and improves the experience of using it. At the same time, the touch operation also simplifies the charging process, making the operation more convenient and efficient.
FAQ
| Technical Information | |||
| Model | AC0732 | AC1116 | AC2232 |
| Rated Power | 7KW+7KW(14KW) | 11KW+11KW(22KW) | 22KW+22KW(44KW) |
| Output Voltage | AC230V | AC400V | |
| Input Voltage | AC230V±10% | AC400V±10% | |
| Input Current | 32A(64A) | 16A(32A) | 32A(64A) |
| Output Current | 32A | 16A | 32A |
| Operating Interface | Pilot Lamp+4.3-Inch Touchable Screen | ||
| Size(mm) | 380×1360×320 | ||
| Installation Method | Wall mounted/Column mounted | ||
| IP Level | IP65 | ||
| Charging Mode | Reservation/Swipe card/APP/password/Manual | ||
| Labbe Leggth | 5M | ||
| Weight | 15KG | ||
| Network Connection | OCPP1.6 | ||
| Operating Temperature | -25℃~+50°C(Derating Higher Than 50°℃) | ||
| Altitude | 2000M | ||
| Networking Protocol | wifi、Bluetooth、4G、LAN | ||
| Intelligent Charging | Dynamic load balacing(optional) | ||
| Leakage Protection | TypeA(optional TypeB) | ||
| Grounding detection | PEN FAULT(For the UK market) | ||
| Standard | GB/T20234/EN62196/EN61851-1,SAE 1772 | ||
| Communication Protocol | GBT27930/CHADEM02.0/DIN70121,0CPP 1.6(JSON).IS0 15118 | ||
