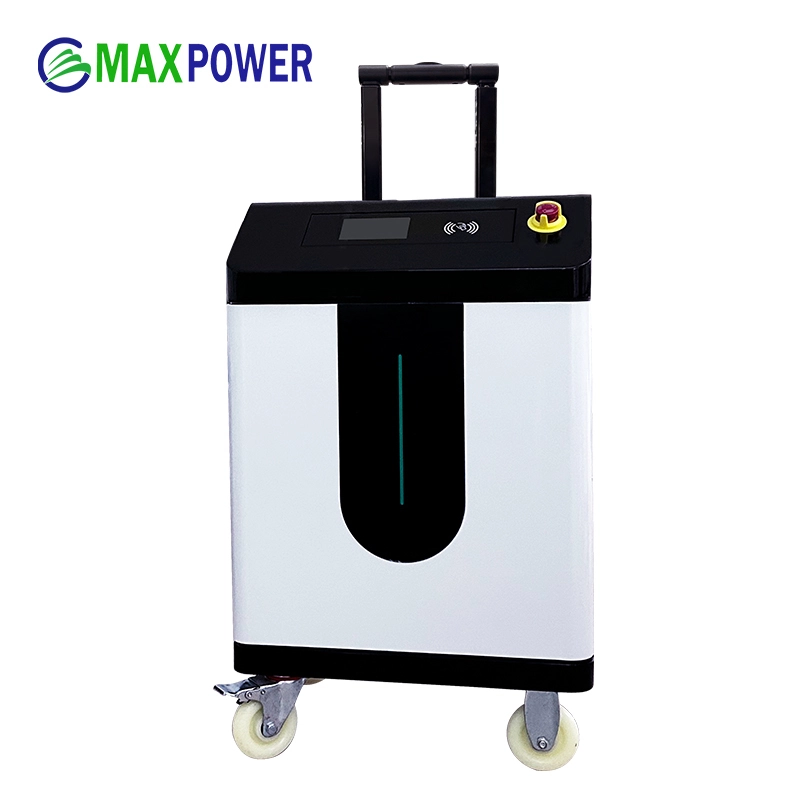

80kw Single Gun Pitman style Portable Ev Charger Max Power
Guangzhou Max Power New Energy Technology Co., Ltd. is a high-tech company which has been invested by the fund supported by Jiangxi provincial government. It focuses on the R&D for the core parts such as on/off board charger & DCDC for new energy vehicle(EV, PHEV etc.). The core team members have rich working experience in Valeo with background of overseas education. The products we developed (OFBC,OBC & DCDC) have excellent performance and dominant position in the market.
Portable chademo ccs fast electric car EV charging station with cable
*Safe & intelligent
Full protection: OVP,UVP,OCP,SC, OTP etc.
Smart intelligent: Self monitor and recovery if the protection disappear.
*Portable and convenient
Portable for use anywhere
One button start/stop
*Open for customization
Touchable screen,Card,password,voice navigation,Payment etc.
*Globe version available
PRODUCT PARAMETER:
|
Model |
20KW / MXPC20750 |
|
|
AC Input |
Input Rating |
380Vac±10% |
|
AC Input Connection |
3P+N+PE, Wye connection |
|
|
Max. Input Current |
40A |
|
|
Frequency |
50 /60 Hz |
|
|
Power Factor |
>0.99@full load |
|
|
Efficiency |
95% |
|
|
DC Output |
Output Voltage Range |
200-750Vdc |
|
Max. Output Power |
7KW |
|
|
Max. Output Current |
33A |
|
|
User Interface |
TFT-LCD Touch Panel |
No |
|
Push Buttons |
No |
|
|
Interface |
No |
|
|
Packing |
Dimension(mm) |
506×161×277mm |
|
Weight |
27KG |
|
|
Environmental |
Operating Temperature |
-40~85℃,25℃(TYPE) |
|
Humidity |
5%-90% RH, non-condensing |
|
|
Altitude |
2000m |
|
|
IP Level |
IP43 |
|
|
Mechanical |
Cable Length |
5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable |
|
Regulation |
Regulation |
EN61851-1 |
|
Certification |
CE , ROHS |
|
|
Charging protocol |
CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 |
|
SUPPORT CAR:
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the
goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q9:Are you a factory or trading company?
A: We are a professional manufacturer of new and sustainable energy applications for over 18 years
