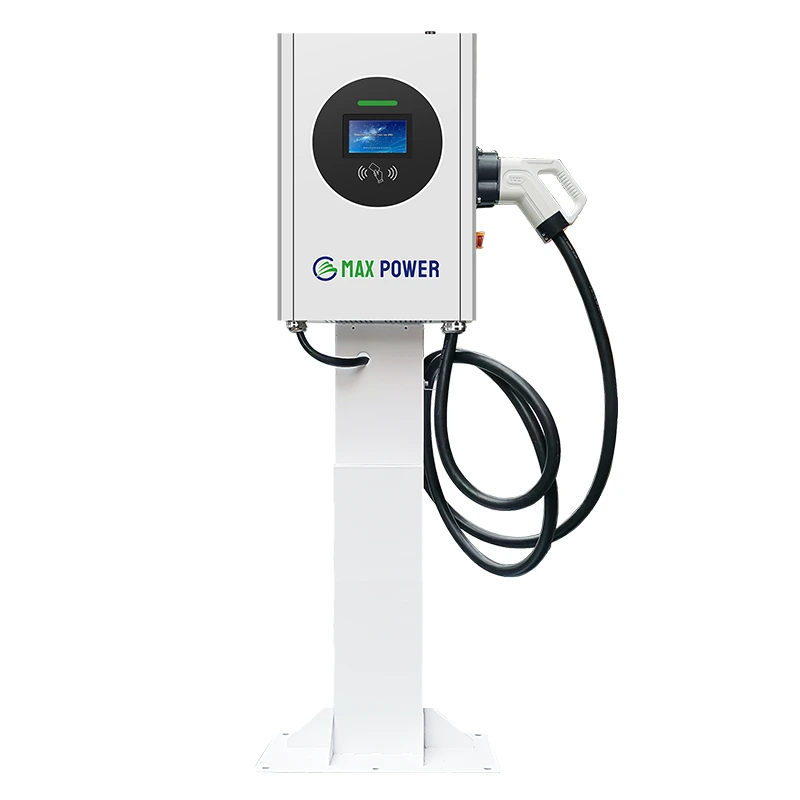

CCS2 Factory Direct DC Fast EV Charger Wallbox 22kw lP65
The 22kw Wallbox EV Charger CCS2 is a high-quality, factory-direct DC fast charging unit that is compatible with most electric vehicles. With an IP65 waterproof rating, it can easily be installed outdoors or indoors. Its impressive charging speed and convenience make it a great choice for EV owners looking for efficient and reliable charging solutions.
Flexible selection of four charging modes
The charging post is equipped with four charging modes to meet diversified needs. Whether through Wi-Fi, Bluetooth, LAN or 4G network, it can easily realize intelligent networking, making charging management more convenient and efficient. This flexibility ensures that users can enjoy a seamless charging experience in different scenarios, meeting the diverse charging needs of modern households.
● CCS2 Charging Station
● Reliable Power Delivery
● Weatherproof Design
● High-Quality Construction
Product Display
Efficient, Fast, Durable, Weatherproof
Fast charging is environmentally friendly
The Myspace RC series provides factory-direct DC fast charging service with a powerful 22kw power and is compatible with the CCS2 interface standard, which ensures rapid charging speed. the IP65-rated waterproof and dustproof design allows the charging post to operate stably in outdoor environments, which is safe and reliable. Its green and energy-saving design concept not only improves charging efficiency, but also helps to reduce carbon emissions and protect the earth's homeland.
◎ Efficient Charging
◎ Factory Direct Support
◎ Indoor/Outdoor Installation
Application Scenario
Easy to install space optimization
Myspace RC series liquid-cooled wall-mounted DC charging post is compactly designed and easy to install, easily adapting to various family parking spaces. Its liquid-cooled circulation system effectively dissipates heat to ensure that the core chip IGBT is kept in the best low-temperature working environment for a long time, extending its service life by three times, and at the same time, it realizes low-noise and high-efficiency charging, making it an ideal assistant for energy-saving and quiet charging in the family, which not only saves space but also improves the quality of life.
FAQ
| Product Detailed Parameters | |||
| model number | RC22500GO(GB/T) | RC22500EO(CCS2) | |
| Input Characteristics | voltage range | AC input voltage:360-440Vac | |
| operating frequency | 50/60HZ | ||
| power factor | ≥0.96 | ||
| Input Current | AC input current:40A | ||
| nput line length | 5 meters (standard) | ||
| Output Characteristics | output power | 22KW | |
| Ancillary sources | GB/T 12V 24V selectable,cCS2 is 12V | ||
| voltage range | 150-750Vdc | ||
| Rated output current | 0-72A | ||
| Charge Gun Cable | 5 meters (approx.4.5meters including charging head and outlet cable) | ||
| Module parameters | Heat dissipation method | liquid cooling | |
| Cooling medium | 50%water plus 50%ethylene glycol | ||
| heat exchange | 1200W | ||
| Cooling Fan Power | 60W(MAX)12VDC | ||
| Cooling water pump power | 66W 12VDC | ||
| static (in asignal) | 65dbm | ||
| protection class | IP65 | ||
| human-computer interaction | 4.3 inch color touch screen | ||
| charging mode | Plug and Charge/4G LAN Port WIFI/Operational OCPP | ||
| operating temperature | -40℃~+70℃;-40℃(±4℃)Module startup; ACinput Power derating above 55℃;Shutdown above 70℃. DCinput 45℃ or above power derating;70℃ or above shutdown | ||
| Weight Dimensions | Machine size 642*454*153mm(without gun head,carrying handle, casters);Net weight:43KG | ||
| human-computer interaction | 4.3 inch color touch screen | ||
| charging mode | Plug and Charge/4G LAN Port WIFI/Operational OCPP | ||
| operating temperature | -40℃~+70℃;-40℃(±4℃)Module startup; ACinput Power derating above 55℃;Shutdown above 70℃. DCinput 45℃ or above power derating;70℃ or above shutdown | ||
| Weight Dimensions | Machine size 642*454*153mm(without gun head,carrying handle, casters);Net weight:43KG | ||
