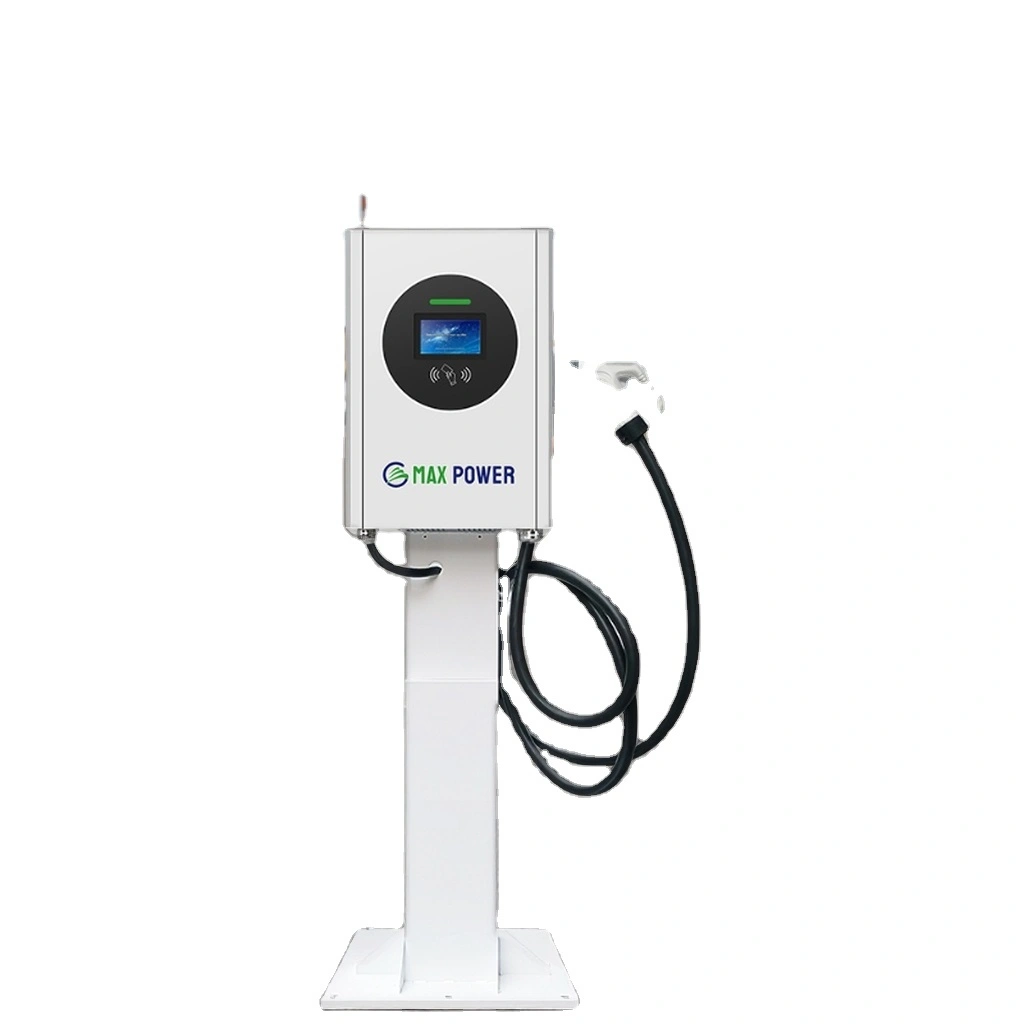

22kw Liquid Cooling CCS2 DC Fast EV Charger - IP65 Home Use
The 22kW Liquid Cooling CCS2 DC Fast EV Charger is a powerful and efficient charging solution for electric vehicles, designed for home use. Its IP65 rating ensures durability and protection against the elements, making it suitable for outdoor installation. With fast charging capabilities and liquid cooling technology, this EV charger offers a convenient and reliable way to charge your vehicle at home.
Our products are quality-oriented
Myspace RC series liquid-cooled wall-mounted DC pile, the use of coolant circulation heat dissipation,the core chip lGBT long-term in the best low-temperature working environment, triple life, low noise, high charging efficiency, green, home energy-saving quiet charging good helper.
● Efficient
● Stylish
● Durable
● Convenient
Product Display
Efficient, powerful, reliable, safe
Efficient, durable, weatherproof, powerful
The 22kw Liquid Cooling CCS2 DC Fast EV Charger is designed for home use with an IP65 rating for outdoor installation. The core attributes include efficient charging speed and compatibility with CCS2 connectors. Its value attributes include user-friendly operation and a durable construction. With liquid cooling technology and a sleek design, this charger offers fast and reliable charging for electric vehicles at home.
◎ Fast Charging Capabilities
◎ Compatibility with CCS2 Connectors
◎ Liquid Cooling System
Application Scenario
Easy to install/space-saving
It’s incredibly easy to install and helps save space. What’s more, it can be installed either in a wall - mounted or columnar style, adapting to various parking spaces.
FAQ
| Product Detailed Parameters | |||
| model number | RC22500GO(GB/T) | RC22500EO(CCS2) | |
| Input Characteristics | voltage range | AC input voltage: 360-440Vac | |
| operating frequency | 50/60HZ | ||
| power factor | ≥0.96 | ||
| Input Current | AC input current: 40 A | ||
| Input line length | 5 meters (standard) | ||
| Output Characteristics | output power | 22KW | |
| Ancillary sources | GB/T 12V 24V selectable, ccs2 is 12V | ||
| voltage range | 150-750Vdc | ||
| Rated output current | 0-72A | ||
| Charge Gun Cable | 5 meters (approx.4.5 meters including charging head and outlet cable) | ||
| Module parameters | Heat dissipation method | liquid cooling | |
| Cooling medium | 50% water plus 50% ethylene glycol | ||
| heat exchange | 1200W | ||
| Cooling Fan Power | 60W(MAX) 12VDC | ||
| Cooling water pump power | 66W 12VDC | ||
| static (in a signal) | 65dbm | ||
| protection class | IP65 | ||
| human-computer interaction | 4.3 inch color touch screen | ||
| charging mode | Plug and Charge/4G LAN Port WIFI/Operational OCPP | ||
| operating temperature | -40℃~+70℃;-40℃(±4℃)Module startup; AC input Power derating above 55℃;Shutdown above 70C. DC input 45C or above power derating; 70C or above shutdown | ||
| Weight Dimensions | Machine size 642*454*153mm (without gun head, carrying handle, casters);Net weight:43KG | ||
