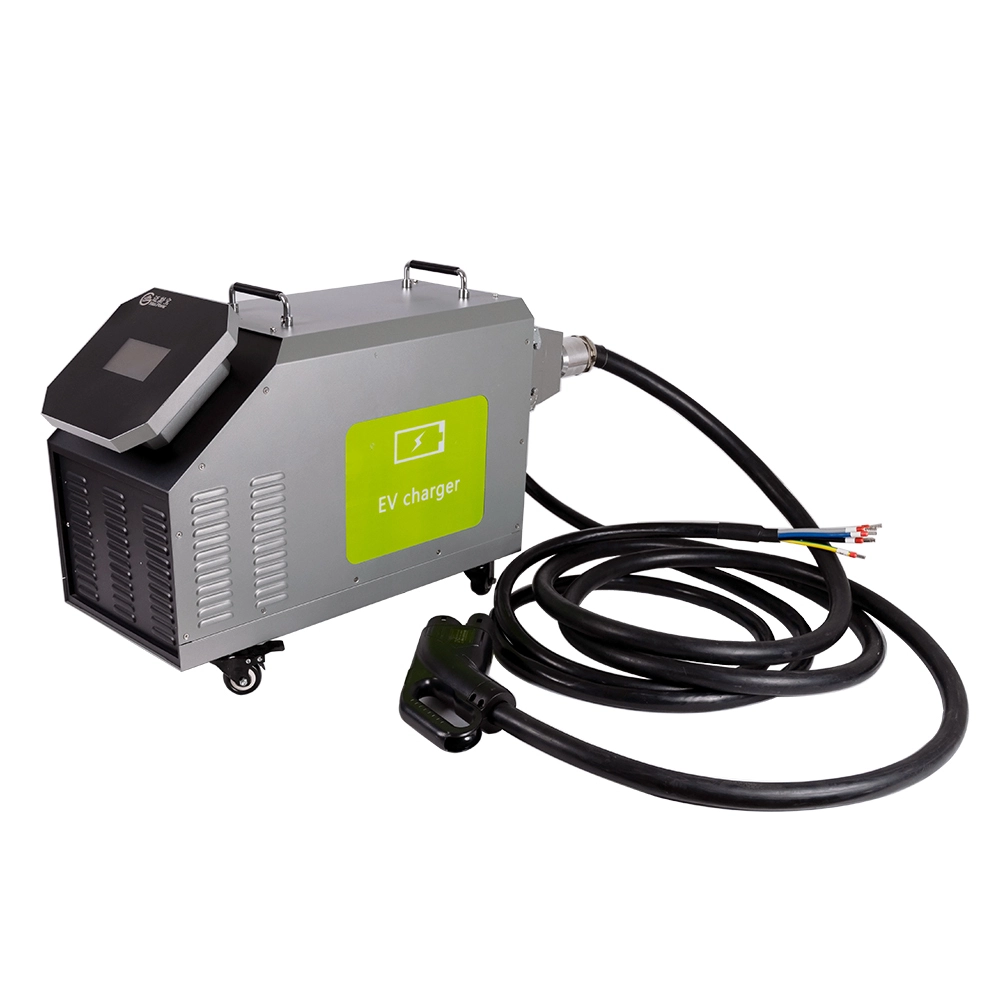

Portable Fast DCElectric Vehicle Charging Station 15KW
The 15KW Portable EV Car Charger Station is a fast DC electric vehicle charging solution that is easy to transport and use. Its high power output allows for quicker charging times, making it convenient for on-the-go charging needs. This charger station provides a reliable and efficient charging option for electric vehicle owners looking for convenience and speed.
Efficient, Convenient, Reliable, Portable
The CCS2 15KW portable charger provides a fast charging solution for electric vehicles with its rated power of up to 15 kW. Equipped with a 4.3-inch display, it intuitively shows the operation steps, which is simple, clear and aesthetically pleasing. Meanwhile, the charger has a built-in intelligent monitoring module and supports OCPP1.6 protocol, which can be seamlessly connected with a variety of back-office management systems to realize remote monitoring and intelligent scheduling. Whether for home use or commercial operation, you can enjoy an efficient and convenient charging experience.
● Efficient 15KW EV Car Charger
● Convenient On-The-Go Charger
● Sleek Compact Design
Product Display
Efficient, Powerful, Convenient, Versatile
Safe and Reliable, Professional Customization
Considering the diversity of outdoor use, the CCS2 charger is specially equipped with a customized rain cover, which effectively prevents the intrusion of rainwater and ensures stable operation in all kinds of bad weather. In addition, the charger supports customized production based on vehicle BMS (Battery Management System) parameters to meet the charging needs of different makes and models of electric vehicles. The high-performance charging module and wide charging range make the charging process more efficient and safer, providing worry-free charging protection for electric vehicle users.
Application Scenario
Detailed description
● Detachable design, support CCS, Chademo and GBT charging standard, just replace the charging gun.
● Bottom caster design, easy to move. Locking wheels to prevent slipping.
Humanized handle design, easy to carry
● Industrial grade switch, strong compatibility and safer
● Exhaust port, good heat dissipation
FAQ
| Production parameters | ||
| Model | 15KW | |
| AC Input | Input Rating | 380Vac±15% |
| AC Input Connection | 3P + N +PE, Wye connection | |
| Max. Input Current | 30A | |
| Frequency | 50 /60 Hz | |
| Power Factor | >0.99@full load | |
| Efficiency | 95% | |
| DC Out put | Output Voltage Range | 200-750Vdc |
| Max, Output Power | 15KW | |
| Max. Output Current | 38A | |
| User Interface | TFT-LCD Touch Panel | No |
| Push Buttons | No | |
| Interface | USB | |
| Packing | Dimension | 640×390×230mm |
| Weight | 68KG | |
| Environmental | Operating Temperature | -40~85℃，25℃（TYPE） |
| Humidity | 5%-90% RH, non-condens,ng | |
| Altitude | 2000m | |
| IP Level | IP44 | |
| Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable |
| Regulation | EN61851-1 | |
| Regulation | Certification | CE , ROHS |
| Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | |
