OCPP Commercial Used DC Fast EV Charger Wallbox Station 7-40KW

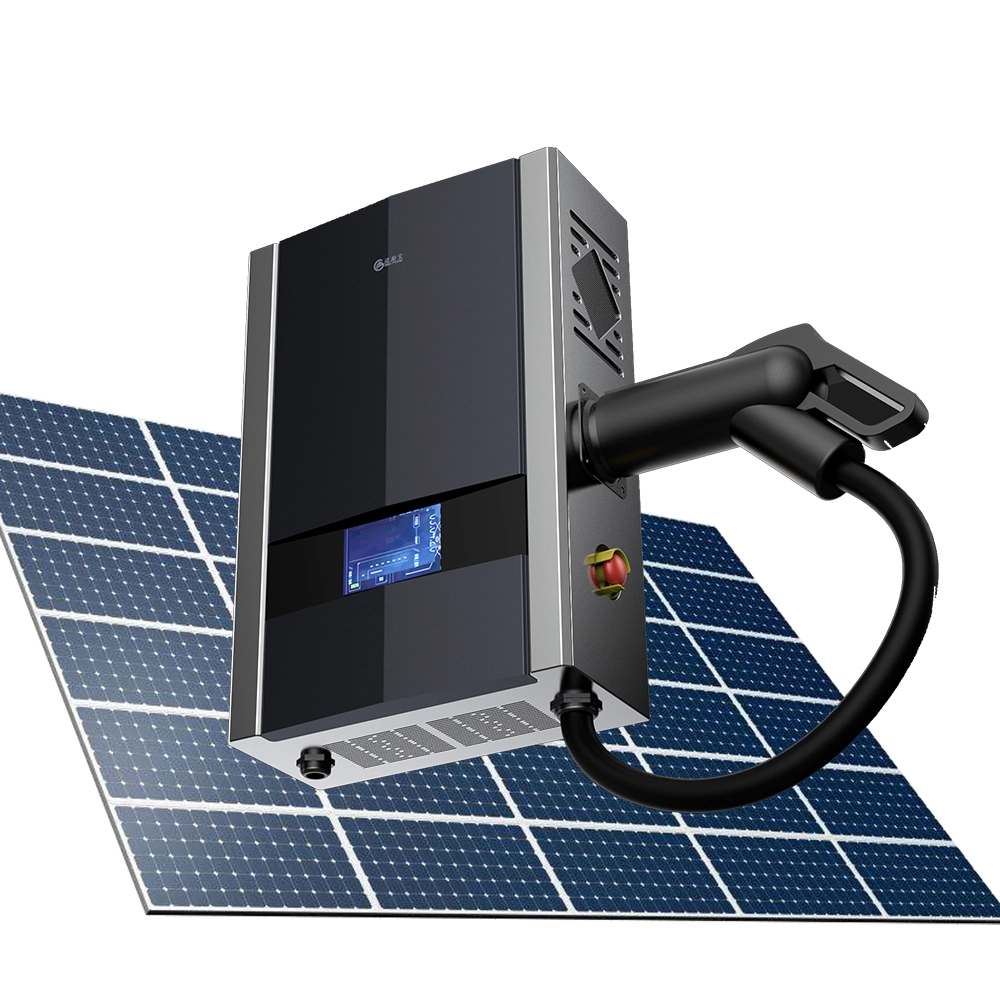

The 15KW OCPP Commercial Solar Fast EV Charger is a powerful and efficient wallbox charging station for electric vehicles. This charger is equipped with OCPP capabilities, allowing for seamless integration with existing EV infrastructure. It is ideal for commercial settings such as shopping centers, office buildings, and parking lots, providing fast and reliable charging for electric vehicles on the go.
Efficient, Reliable, Stylish, Eco-Friendly
The 15KW OCPP commercial solar fast EV charger, designed for electric vehicles, boasts up to 15 kW output power to ensure a fast charging experience. Compatible with a wide range of electric vehicle models, both domestic cars and commercial vehicles can enjoy efficient charging services. Its OCPP (Open Charge Point Protocol) communication protocol allows the charging station to seamlessly connect with the backend management system to realize intelligent management and monitoring.
◎ High-speed Charging
◎ OCPP Compatibility
◎ Sleek Design
Product Display
Efficient, Powerful, Smart, Versatile
Intelligent and convenient operation experience
Equipped with a 4.3-inch touch screen display, users can easily operate it through an intuitive interface, and it supports code-sweeping or card-swiping charging, which greatly enhances the convenience of use. At the same time, it supports cell phone remote charging monitoring and control function, no matter where you are, you can grasp the charging status and adjust the charging plan at any time, making the charging process more intelligent and personalized.
Application Scenario
Durable and Environmentally Friendly
Designed with IP54 protection level, it effectively resists dust and water splash, ensuring stable operation in various harsh environments. Compact size and light weight make installation and maintenance easier. Its fashionable and high-end appearance design not only enhances the overall aesthetics of the charging station, but also highlights the green charging concept, making it an ideal choice for commercial premises, garages, race tracks or campgrounds, and other scenarios.
FAQ
| Production Parameters | ||
| Model | 15KW | |
| AC Input | Input Rating | 380Vac±15% |
| AC Input Connection | 3P + N +PE, Wye connection | |
| Max. Input Current | 30A | |
| Frequency | 50 /60 Hz | |
| Power Factor | >0.99@full load | |
| Efficiency | 95% | |
| DC Output | Output Voltage Range | 200-750Vdc |
| Max. Output Power | 15KW | |
| Max. Output Current | 38A | |
| User Interface | TFT-LCD Touch Panel | Yes(swiping card without TFT-LCD Touch Panel) |
| Push Buttons | Yes | |
| Interface | Yes | |
| Packing | Dimension | W:548 ×378× 160mm U:1500×520× 250mm |
| Weight | Wall:30KG Upright:35KG | |
| Environmental | Operating Temperature | -40~85℃，25℃（TYPE） |
| Humidity | 5%-90% RH, non-condens,ng | |
| Altitude | 2000m | |
| IP Level | IP54 | |
| Mechanical | Cable Length | 5M (CHAdeMO) , 5M (CCS), 5M(GB/T) Customized acceptable |
| Regulation | EN61851-1 | |
| Regulation | Certification | CE , ROHS |
| Charging protocol | CHAdeMO 2.0 / DIN 70121/ISD1S118/IEC618Sl-23,IEC618Sl-24 | |
